VPTwin Paper

VPTwin: Real-Sim-Real Video Prediction for Robotic Manipulation Planning

Zhenghao XiaoMinting PanNantian HeDongzhan ZhouYunbo Wang

arXiv Hugging Face (coming soon) GitHub (coming soon) BibTeX Demos

TL;DR: VPTwin anchors real-world video prediction with real-synchronized simulation twins to suppress long-horizon physical hallucinations in robot manipulation planning.

Abstract

While action-conditioned video prediction provides an intuitive world model for robotics, purely data-driven predictors often suffer from compounding errors and physically implausible hallucinations in long-horizon rollouts, severely undermining downstream action planning. We propose VPTwin, a Real-Sim-Real video prediction framework that anchors real-world future prediction using real-synchronized simulation twins. For a target manipulation task, a VLM reconstructs an executable digital twin from a real demonstration episode. To accommodate the ill-posed estimation of unobserved physical properties, Isaac Sim simulates multiple forward dynamic rollouts across randomized physical configurations under candidate action trajectories. Using these rollouts as in-context references, VPTwin harmonizes both domains, using simulation dynamics to enforce physical plausibility while capturing unmodeled contact interactions from real video. Furthermore, we establish a predictive planning loop using VPTwin to visually verify VLM-proposed actions and guide reliable real-world execution. Evaluations show substantial reductions in physical hallucinations during video prediction and marked improvements in manipulation planning performance.

Real-robot demonstrations

Selected hardware executions. SIMPACT failures next to VPTwin successes. Clips are representative, not an exhaustive trial set, and are not frame-aligned.

BASELINE

SIMPACT

Failed
OURS

VPTwin

Success

Across the five trials, the placed position is randomly shifted within ±1.25 cm along the x- and y-axes.

Overall

Task VPTwin SIMPACT
Grasp cup 20/3557.1% · 40.9–72.0% 9/3525.7% · 14.2–42.1%
Open drawer 20/2580.0% · 60.9–91.1% 8/2532.0% · 17.2–51.6%
Total 40/6066.7% · 54.1–77.3% 17/6028.3% · 18.5–40.8%

Ranges are 95% Wilson intervals.

Grasp cup

Position VPTwin SIMPACT
Center 6/101/5 + 5/5 0/100/5 + 0/5
Far 0/5 0/5
Near 10/105/5 + 5/5 9/105/5 + 4/5
Left 4/5 0/5
Right 0/5 0/5

Open drawer

Trajectory VPTwin SIMPACT
13/50/5
24/52/5
35/50/5
44/53/5
54/53/5
Total20/258/25

Method

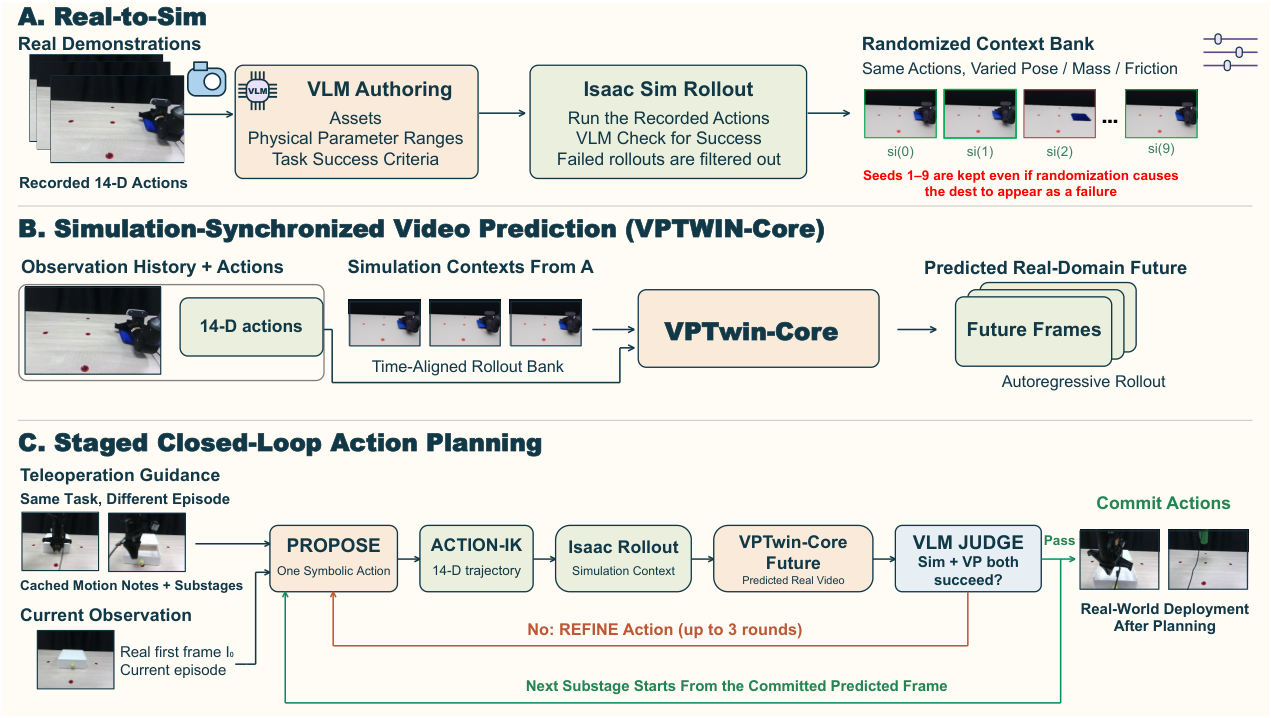

Figure 1 of VPTwin. A: real demonstrations are turned into digital-twin assets and randomized Isaac Sim rollouts. B: VPTwin-Core predicts real-domain video from observation history, actions, and time-aligned simulation. C: staged planning proposes, simulates, predicts, and judges actions, then commits a chunk or refines it.

A. Real-to-sim

A VLM authors executable twins and physical parameter ranges from a demonstration. Isaac Sim replays the same actions with varied pose, mass, and friction.

B. Predict the real future

Observation history, the 14-D action, and time-aligned simulation rollouts condition VPTwin-Core.

C. Check, then commit

A VLM judges simulation and the predicted video together. Failed candidates are refined up to three times. Hardware runs only after every substage passes.

Inside VPTwin-Core

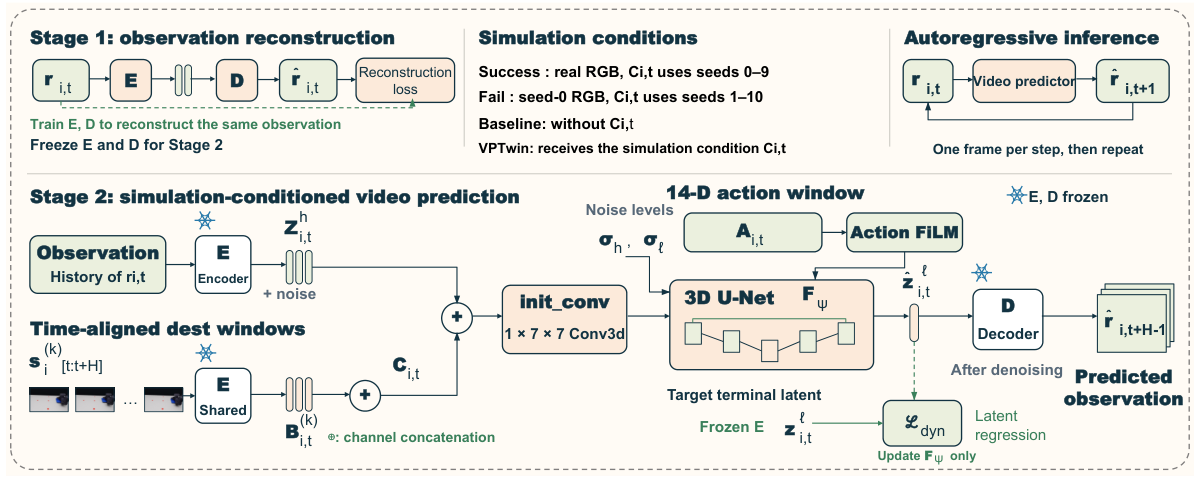

Paper Figure 2: two-stage training, a shared frozen encoder and decoder, a simulation-conditioned 3D U-Net, 14-D action FiLM, and autoregressive inference.

Two-stage learning. An encoder and decoder are trained on real observations, then frozen. The predictor is trained on actions, observation latents, and concatenated simulation-context latents.

Failure-aware co-training. On Grasp Cup and Open & Close Drawer, 118 real success episodes are paired with 118 synthetic failures. The nominal failed rollout is the failure target; other randomized rollouts are conditioning.

Paper Figure 2. The failure pool covers two task families. The VLM-authored success set covers four.

Video prediction

Simulation context improves full-episode prediction in both twin settings. PSNR is higher-is-better, from paper Table 1.

SettingDataIWSVPTwinGain
Measured-catalog twins548 episodes · 6 families25.58 dB28.57 dB+2.99 dB
VLM-authored twins277 episodes · 4 families25.64 dB28.96 dB+3.32 dB
Paper Figure 3 compares ground truth, IWS, and VPTwin-Core at 0%, 50%, and 100% on six manipulation tasks.
Paper Figure 3. Real-domain predictions across rigid, deformable, and articulated manipulation.

Hardware evaluation uses 5 drawer trials and 7 cup trials. Twin authoring assumes calibrated cameras and task-specific reconstruction. Synthetic failures do not cover every real contact.

Citation

Method, experiments, and the planning protocol are in the paper.

arXiv:2609.33104
BibTeX
@misc{xiao2026vptwin,
  title={VPTwin: Real-Sim-Real Video Prediction
         for Robotic Manipulation Planning},
  author={Zhenghao Xiao and Minting Pan and
          Nantian He and Dongzhan Zhou and
          Yunbo Wang},
  year={2026},
  eprint={2609.33104},
  archivePrefix={arXiv},
  primaryClass={cs.RO},
  url={https://arxiv.org/abs/2609.33104}
}
